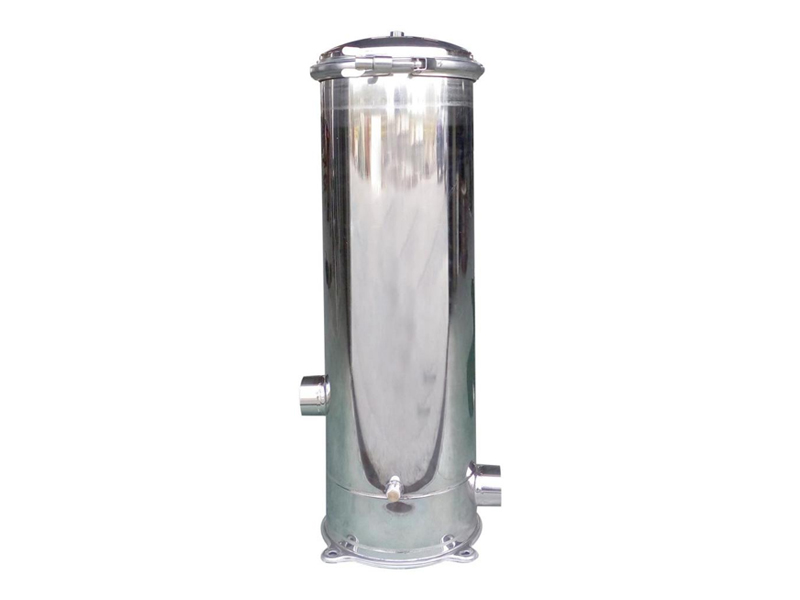

产品概述：
◆材质：SUS304、SUS316L
◆接口形式：内丝或法兰
◆密封材料：丁晴密封圈、硅胶密封圈、氟胶密封圈
◆密封形式：梯形密封圈
◆适用滤芯：10"、20"、30"、40"平面型、222型
◆设计压力：0.8Mpa
◆表面处理：抛光或喷砂
PRODUCT OVERVIEW:
◆Material:SUS304、SUS316L
◆Connection:type：screw thread or flange
◆Seal material:BUNA、Silicone、VITON
◆Seal type:ladder-type seal ring
◆Apply to a strainer:10"、20"、30"、40"plane、222Plug-in
◆Design pressure:0.8Mpa
◆Surface disposal:polishing or sandblast
技术参数：TECHNICAL DATA：
|
Outline dimension 外形尺寸 Model style 型号样式 |
A mm |
B mm |
C mm |
D mm |
N1 |
N2 |
N3 |
N4 |
流量 Flow (m3/h) |
容积 Volume (L) |
|
RHLX-3-10 |
Φ200 |
250 |
70 |
515 |
Rc1"内丝 |
Rc1"内丝 |
Rc1/4"内丝 |
Rc3/8"内丝 |
1.5 |
10 |
|
RHLX-3-20 |
Φ200 |
300 |
70 |
735 |
Rc1"内丝 |
Rc1"内丝 |
Rc1/4"内丝 |
Rc3/8"内丝 |
3 |
18 |
|
RHLX-3-30 |
Φ200 |
500 |
70 |
1005 |
Rc1"内丝 |
Rc1"内丝 |
Rc1/4"内丝 |
Rc3/8"内丝 |
4.5 |
26 |
|
RHLX-5-10 |
Φ200 |
250 |
70 |
515 |
Rc1"内丝 |
Rc1"内丝 |
Rc1/4"内丝 |
Rc3/8"内丝 |
2.5 |
10 |
|
RHLX-5-20 |
Φ200 |
300 |
70 |
735 |
Rc1"内丝 |
Rc1"内丝 |
Rc1/4"内丝 |
Rc3/8"内丝 |
5 |
18 |
|
RHLX-5-30 |
Φ200 |
500 |
70 |
1005 |
Rc2"内丝 |
Rc2"内丝 |
Rc1/4"内丝 |
Rc3/8"内丝 |
7.5 |
26 |
|
RHLX-5-40 |
Φ200 |
600 |
70 |
1280 |
Rc2"内丝 |
Rc2"内丝 |
Rc1/4"内丝 |
Rc3/8"内丝 |
10 |
34 |
|
RHLX-7-10 |
Φ219 |
250 |
70 |
520 |
Rc1"内丝 |
Rc1"内丝 |
Rc1/4"内丝 |
Rc3/8"内丝 |
3.5 |
12 |
|
RHLX-7-20 |
Φ219 |
300 |
70 |
740 |
Rc1"内丝 |
Rc1"内丝 |
Rc1/4"内丝 |
Rc3/8"内丝 |
7 |
22 |
|
RHLX-7-30 |
Φ219 |
500 |
70 |
1010 |
Rc2"内丝 |
Rc2"内丝 |
Rc1/4"内丝 |
Rc3/8"内丝 |
10 |
32 |
|
RHLX-7-40 |
Φ219 |
600 |
70 |
1285 |
Rc2"内丝 |
Rc2"内丝 |
Rc1/4"内丝 |
Rc3/8"内丝 |
14 |
42 |
