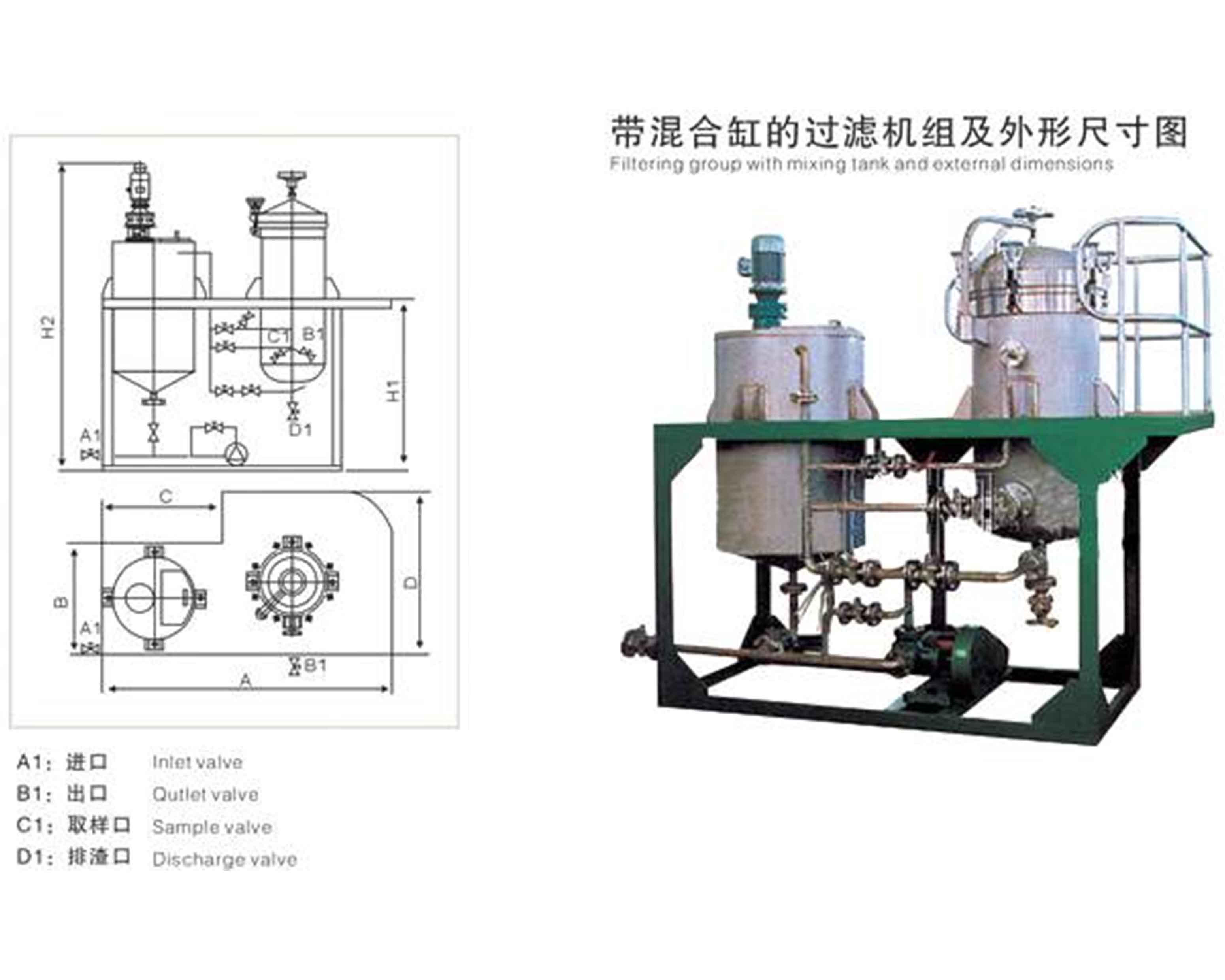

过滤机组简介：
GBF型高效板式密闭过滤机和混合缸、输送泵、管道、阀门、电气控制等一些辅助设备组成一个完整的过滤系统。其过滤工艺需视被过滤介质而定。
A whole filter system is made up of GBF type filter, mixing cylinder,transfer pump,piping,valve,electric control system and some assistant equipments.The filter techniques shall be decided by filter medium.
技术参数：TECHNICAL DATA：
|
型号 Model |
A mm |
B mm |
C mm |
D mm |
H1 mm |
H2 mm |
进出口连接 Inlet And Outlet Connection |
配用电机 Motorused |
重量 Weight (kg) |
|
|
型号 Model |
功率 Kw Power |
|||||||||
|
GBF-2 |
1800 |
850 |
800 |
1250 |
1100 |
2100 |
法兰Flange Pg10DN25 |
YB112M-6 |
2.2 |
1800 |
|
YB801-4 |
0.55 |
|||||||||
|
GBF-4 |
2300 |
880 |
950 |
1280 |
1400 |
2500 |
法兰Flange Pg10DN40 |
YB100L2-4 |
3 |
2000 |
|
YB90L-4 |
1.5 |
|||||||||
|
GBF-7 |
2500 |
1000 |
1050 |
1400 |
1400 |
2500 |
法兰Flange Pg10DN40 |
YB132M1-6 |
5.5 |
2200 |
|
YB90L-4 |
1.5 |
|||||||||
|
GBF-10 |
2950 |
1180 |
1300 |
1580 |
1650 |
2900 |
法兰Flange Pg10DN50 |
YB132M2-6 |
5.5 |
2500 |
|
YB90L-4 |
1.5 |
|||||||||
|
GBF-15 |
3200 |
1280 |
1525 |
1680 |
1650 |
2900 |
法兰Flange Pg10DN50 |
YB132M2-6 |
5.5 |
3200 |
|
YB90L-4 |
1.5 |
|||||||||
|
GBF-20 |
3200 |
1280 |
1525 |
1680 |
1850 |
3200 |
法兰Flange Pg10DN50 |
YB132M2-6 |
5.5 |
3800 |
|
YB90L-4 |
1.5 |
|||||||||
注：电机可根据用户待滤液物性选Y型或YB型。
According to the unfiltered material，the motor can be chosen type Y or YB。
